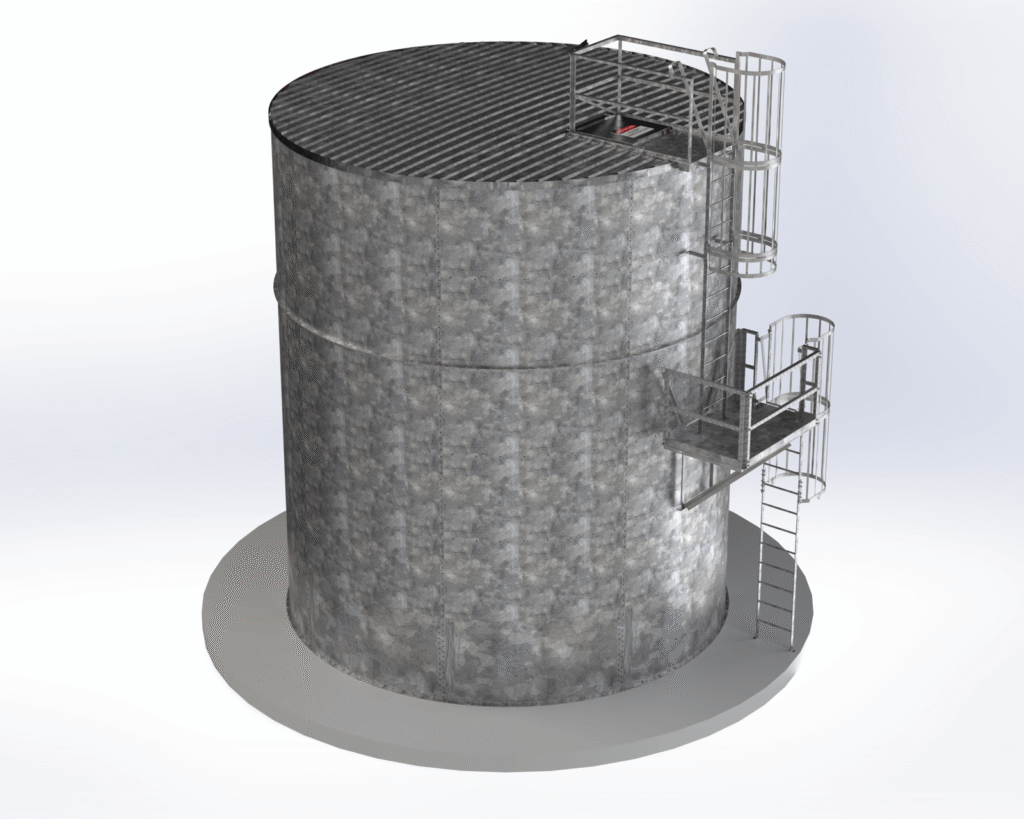

DOMINATOR round tanks are available in a wide range of diameters and heights, starting from 2.99m diameter, to suit almost any fire protection requirement. Larger volumes are supplied as multiple tanks.
Tanks are manufactured to AS 2304 and AS 3500.1, with signage to AS 2419.1, compliant air gaps, roofs designed to AS/NZS 1170 and ladders to AS 1657. Each has a 25-year design life and a 10-year warranty as standard, with extended warranties available.
Product details
- Bolted galvanised steel panels as standard, with stainless steel available, minimum 2mm thick, plus GR450 and LDX 2102 stainless steel for complex and large storage
- PVC liner membrane as standard
- Galvanised roof structure with zincalume sheeting and anti-vermin protection, with stainless steel roofs available
- 750 x 750mm inspection access in the roof and 600 x 600mm manhole at low level
- External galvanised steel ladder to AS 1657, with lockable guard
- Internal galvanised steel ladder reaching 2.0m below high water level, adjusted for tanks under 2.35m high
- 2 x 25mm ball floats
- Tank level indicator and tank signage to AS 2419.1
- Inlet, overflow, drain and outlet connections, with anti-vortex plate as standard
- Suction outlets fitted with anti-vortex and base plates to stop the liner being drawn into the outlet and damaging the liner or pump
- Compliant air gaps as required by Australian Standards
Options
- Digital tank level indicator
- Quick fill valves
- Colorbond powder coated finishes for panels and roofing
- Roof walkways, stairs and other modular access
- REG126 and third-party engineering
- 304 or 316 stainless steel tank finish
