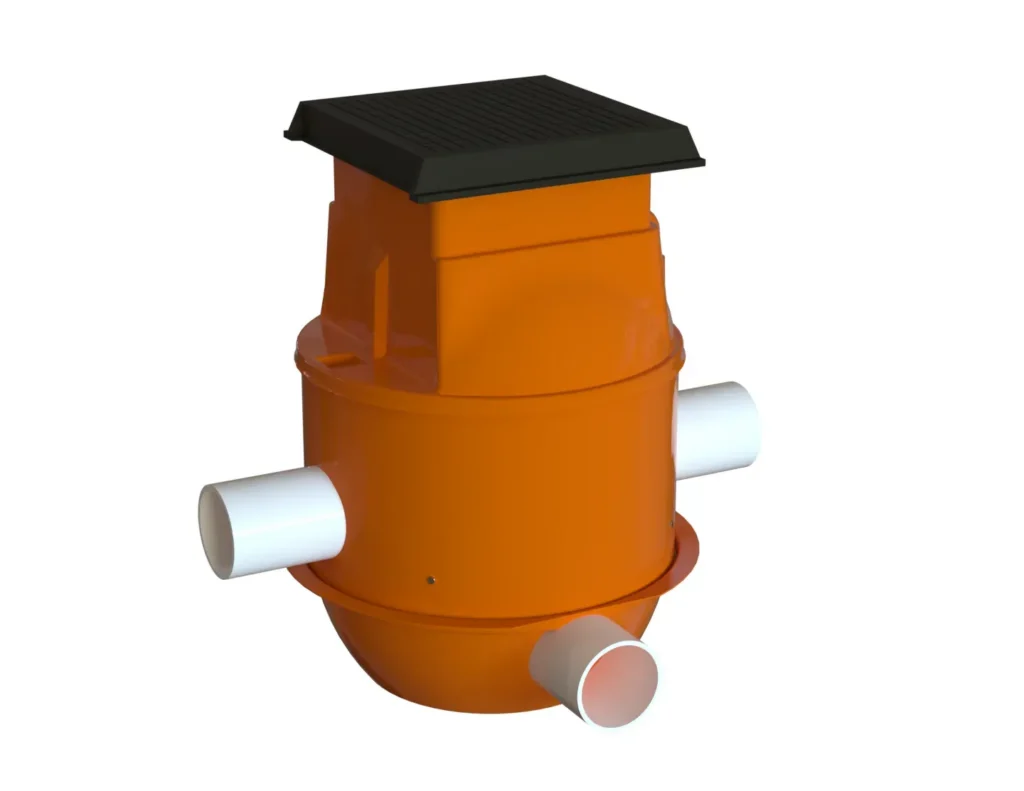

Rainceptor Below Ground Pre-Tank Filtration System

PROTECT YOUR PUMPS & TANK

Rainceptor is a unique high-performance inline rainwater filtration device designed to filter rainwater/stormwater runoff from roof areas up to 6600m² with a single unit. Rainwater collected off the roof passes into the Rainceptor which pre-filters larger dirt particles and leaves, which are then washed directly into the Stormwater. Pre-filtered water then passes through a secondary filter, screening the water down to 500 microns and clean water flows to your storage tank. This removes high-levels of sediment and reduces the development of E-coli bacteria caused by decomposing leaves and debris building up in your tank.

Features

The Rainceptor below-ground filtration device can manage rainwater/stormwater runoff from roof areas up to 6600m², features include:
CONSTRUCTION & MATERIALS
  • Material Filter casing: Stainless steel 1.4301
  • Material Filter sieve: Stainless steel 1.4301
  • Mesh size: 0.5mm
  • Filter sieve easily removable with an M8 removal eye
  • Filter according to DIN 1989-2, Type C
SPECIFICATION
  • Collection Flow Rate (To Tank): 200LPS
  • Inlet rainwater: DN375
  • Outlet to storage: DN300
  • Outlet to sewer: DN375
  • Weight: 140kg
  • Max working weight: 840kg
ABOVE GROUND OPTIONS
  • A range of above ground Rainceptors is also available.
